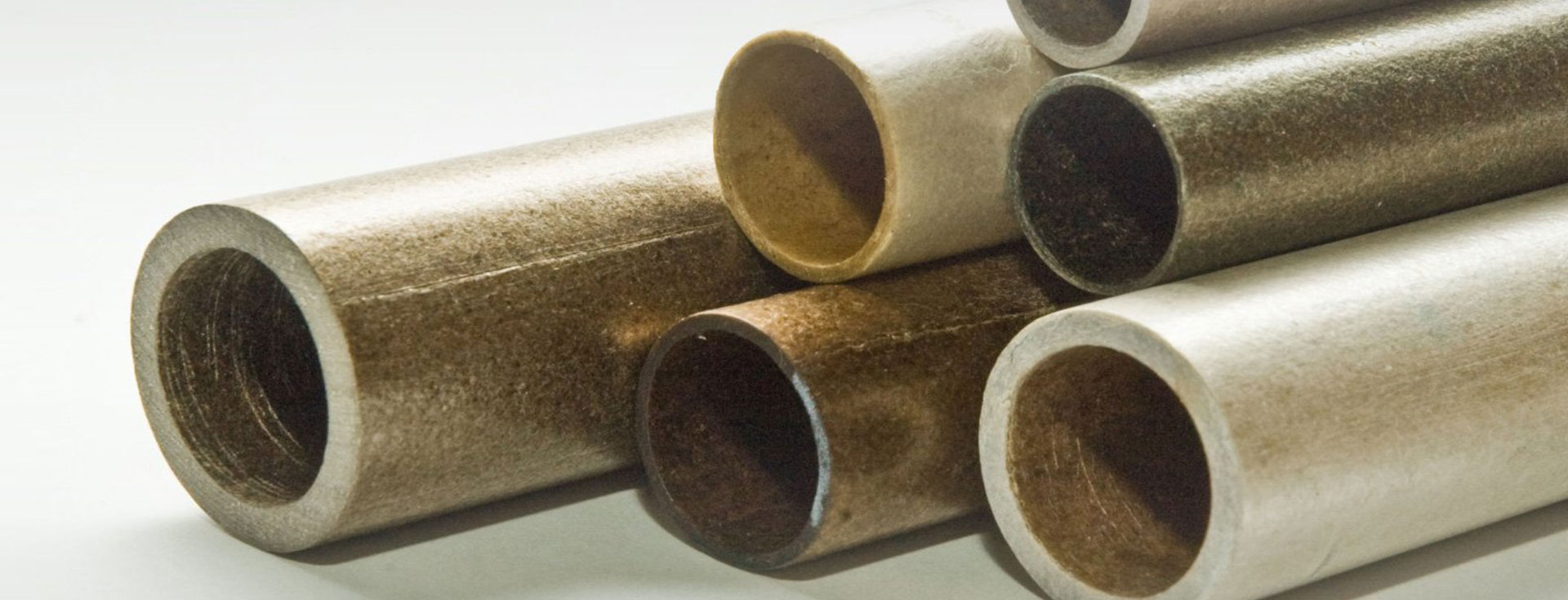

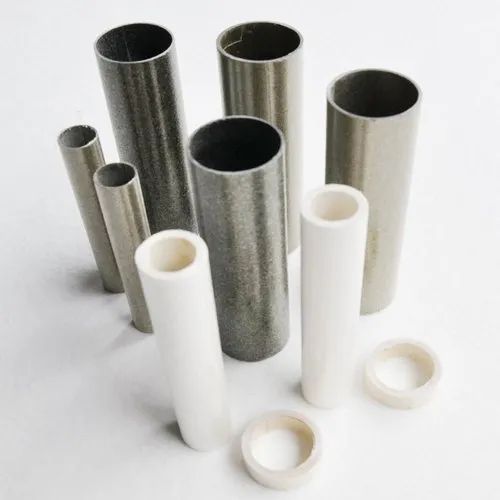

Mica tube is formed by muscovite paper or phlogopite paper fixed with silicon resin and processed by roll form. It has good dielectric capability and excellent mechanical strength, and often used as the insulating tube form material in all kinds of electric equipment’s, motors, furnaces, electric-arc furnaces, other metallurgy industry equipment’s.
According to mica paper, Mica Tube can be divided into:
Excellent high temperature resistance and insulation properties:
High mechanical strength
| Item | Unit | Muscovite mica tube | Phlogopite mica tube | Test Procedure |
|---|---|---|---|---|
| Mica Paper | Muscovite | Phlogopite | ||
| Mica Content | % | ≈85 | ≈85 | IEC 60371-2 |
| Bond Content | % | ≈15 | ≈15 | IEC 60371-2 |
| Density | g/cm3 | 1.6-2.2 | 1.6-2.2 | IEC 60371-2 |
| Heat Resistance | Continuous Services | ℃ | 500 | 700 | |
|---|---|---|---|---|---|
| Intermittent Services | ℃ | 800 | 1000 | ||
| Heat Loss at 500℃ | % | ﹤1 | ﹤1 | IEC 60371-2 | |
| Heat Loss at 700℃ | % | ﹤2 | ﹤2 | IEC 60371-2 | |
| Dielectric Strength | kV/mm | ﹥1.5 | ﹥1.5 | IEC 60243-1 | |
| Insulation Resistance at 23℃ | Ω·cm | 1016 | 1016 | IEC 60243-1 | |
| Flame Resistance | UL94 V-0 | UL94 V-0 | UL94 |
