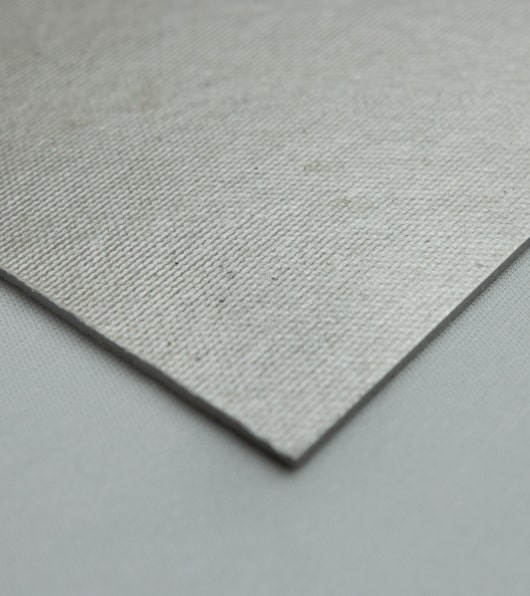

Phlogopite Mica Laminate from SAM Composites India Pvt. Ltd. is made from phlogopite mica paper bonded with silicone resin and pressed into rigid plate. It is asbestos free, shows good dielectric strength and can be used in ambient temperatures of 500 to 1000°C. We supply it in standard sheets and cut-to-size pieces for electrical, heating and thermal applications.
Phlogopite mica holds up where organic insulating boards would char or soften. Phlogopite Mica Laminate gives you a flat, rigid insulating material with good flexural strength and hardness that is easy to fabricate. Every batch is inspected before dispatch, and we cut or machine it to your drawing. Laminated phlogopite mica is chosen where a rigid, flat insulating part has to survive heat that would burn or soften organic laminates.
Phlogopite Mica Laminate is used for lining and spacing in furnaces, heaters and kilns, as a heat shield around hot equipment, and as insulating plate in electrical assemblies. Thin sheet below 2 mm can be stamped; thicker plate is turned, milled or drilled.
Our units are divided into various dedicated and independent departments.
| Parameter | Specification |
|---|---|
| Description | Rigid mica plate formed from phlogopite mica paper bonded with silicone resin; good dielectric capability and mechanical strength, asbestos free, with low smoke and odour when heated |
| Type | Phlogopite rigid mica plate |
| Thickness | 0.1 mm to 5 mm (0.1, 0.15, 0.2, 0.25, 0.3 mm ... 5 mm) |
| Standard Size | 1000 x 600 mm; 1000 x 1200 mm; 1000 x 2400 mm (sheet size can be adjusted by cutting) |
| Operating Temperature | 500 to 1000°C ambient; breakdown resistance about 15 kV/mm |
| Processing | Below 2.0 mm thickness: stamping. Above 2.0 mm: turning, milling, drilling and other processes |
| Packaging | Typically 50 kg per pack, sealed in plastic film and packed in carton; fumigation-free pallet for export |
| Storage | Dry, moisture-proof, indoors at room temperature; no service life limit |
| Fabrication | Custom fabricated to the exact specifications and drawings of our customers |
